Mappls Route Image API¶

Easy To Integrate Maps & Location APIs & SDKs For Web & Mobile Applications

Powered with India's most comprehensive and robust mapping functionalities.

You can get your api key to be used in this document here: https://about.mappls.com/api/

Introduction¶

This API has two variants:

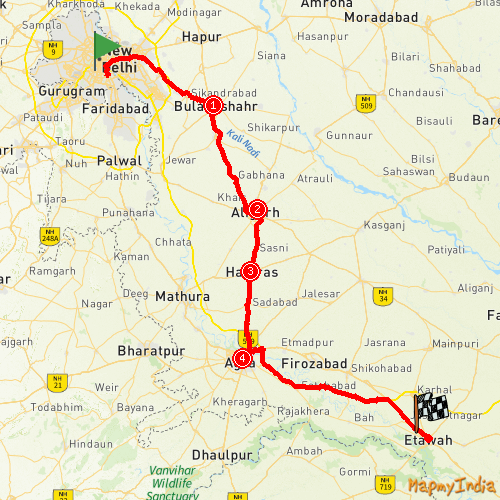

Provide a route drawn on a static map on the basis of input origin & destination pair.

OR

Provide a route drawn on a static map on the basis of the input path of that route.

Both variants differ in the HTTP methods used and features they offer and this document highlights them

Getting Access¶

Before using the API in the your solution, please ensure that the related access is enabled in the Mappls Console, within your app - be it for Mobile OR Web or Cloud integration.

Copy and paste the key from your credentials section from your API keys into the access_token query parameter.
- Your static key can be secured by whitelisting its usage for particular IPs (in case of cloud app usage) OR a set of domains (in case of a web app)
- Your static key obtained from your Console is to be passed as a query parameter: access_token.

Authentication Object - `access_token` mandatory query parameter.¶

access_token: "hklmgbwzrxncdyavtsuojqpiefrbhqplnm".

Variants:¶

GET
POST

1. GET - Route Image API¶

Request Parameters¶

The following input parameters will be supported in the GET Route Image API request

Mandatory Parameters¶

points (string) The array of coordinates from origin to destination with optional via points in between. Each coordinate is .separated by a semi-colon. Example: "28.550716,77.268928;28.4070,77.8498;27.90,78.0880;27.5981,78.049;27.1767,78.0081;26.7829,79.0276".

Optional Parameters¶

size (string): size of the image is widthXheight. Min 100X100 & Max 1000X1000; default is 400x400.
color (string): RGB Color in "R,G,B" values. Default is "0,0,255".
strokeWidth (number): The stroke width of the route polyline. Min: 1; max: 8; default: 5.
from_icon (string): URL for the origin marker.
to_icon (string): URL for the destination marker.
via_icon (string): URL for the via-point marker.

2. POST Route Image API¶

Request Content Type¶

Content-Type:application/json

Request Body¶

The following input properties will be supported in the POST Route Image API request

Mandatory Properties¶

polyline (array of objects) The Polyline & its properties; each containing:
- color (string): hexadecimal color code. Example: #0000FF
- strokeWidth (integer): number indicating thickness of the polyline drawn on the map. Example: 6
- geometry (array of arrays): Array of longitude, latitude values that indicate the path of the route polyline which needs to be drawn on the map. Example: [77.58416,13.00086].

Optional Optional Properties¶

from_icon (string): URL for the origin marker.
to_icon (string): URL for the destination marker.
via_icon (string): URL for the via-point marker.
height (integer): indicating the height of the map.
width (integer): indicating the width of the map.

Response Type¶

Content-Type: image/png

Response Codes¶

Note: as HTTP response code

Success¶

200: To denote a successful API call.
204: To denote the API was a success but no results were found.

Client-Side Issues¶

400: Bad Request, User made an error while creating a valid request.
401: Unauthorized, Developer’s key is not allowed to send a request with restricted parameters.
403: Forbidden, Developer’s key has hit its daily/hourly limit.
412: Pre-condition failed; incorrect or invalid combination of input coordinates Server-Side Issues:
500: Internal Server Error, the request caused an error in our systems.
503: Service Unavailable, during our maintenance break or server down-times.

Response Messages¶

Note: as HTTP response message

200: Success.
204: No matches we’re found for the provided query.
400: Something’s just not right with the request.
401: Access Denied.
403: Services for this key has been suspended due to daily/hourly transactions limit.
412: Pre-condition failed; incorrect or invalid combination of input coordinates
500: Something went wrong.
503: Maintenance Break.

Transaction Information¶

One request using the API link will be considered as one transaction.

Sample request¶

cURL - GET - Route Image API¶

curl --location 'https://tile.mappls.com/map/raster_tile/route_image?points=28.550716%2C77.268928%3B28.4070%2C77.8498&size=400x400&color=255%2C0%2C0&strokeWidth=2&from_icon=https%3A%2F%2Fimg.icons8.com%2Fcolor%2F48%2F000000%2Fgreen-flag.png&to_icon=https%3A%2F%2Fimg.icons8.com%2Fdoodle%2F48%2F000000%2Ffinish-flag.png&access_token=hklmgbwzrxncdyavtsuojqpiefrbhqplnm'

cURL - GET - Route Image API¶

curl --location 'https://tile.mappls.com/map/raster_tile/route_image?access_token=hklmgbwzrxncdyavtsuojqpiefrbhqplnm' \
--header 'Content-Type: application/json' \
--data '{
    "height": 500,
    "width": 500,
    "from_icon": "https://img.icons8.com/color/48/000000/green-flag.png",
    "to_icon": "https://img.icons8.com/doodle/48/000000/finish-flag.png",
    "via_icon": "",
    "polyline": [
        {
            "color": "#0000FF",
            "strokeWidth": 6,
            "geometry": [
                [
                    77.58416,
                    13.00086
                ],
                [
                    77.58416,
                    13.00065
                ],
                [
                    77.58421,
                    13.00007
                ],
                [
                    77.58421,
                    12.99972
                ],
                [
                    77.58427,
                    12.99877
                ],
                [
                    77.58434,
                    12.99828
                ],
                [
                    77.58439,
                    12.99793
                ],
                [
                    77.58443,
                    12.99773
                ],
                [
                    77.58443,
                    12.99772
                ],
                [
                    77.58446,
                    12.99754
                ],
                [
                    77.58454,
                    12.99709
                ],
                [
                    77.58456,
                    12.99701
                ],
                [
                    77.5846,
                    12.99686
                ],
                [
                    77.58461,
                    12.99684
                ],
                [
                    77.58471,
                    12.99654
                ],
                [
                    77.58474,
                    12.9964
                ],
                [
                    77.58476,
                    12.99634
                ],
                [
                    77.58479,
                    12.99623
                ]
            ]
        },
        {
            "color": "#DE3500",
            "strokeWidth": 6,
            "geometry": [
                [
                    77.58495,
                    12.99546
                ],
                [
                    77.58498,
                    12.99528
                ],
                [
                    77.58511,
                    12.99469
                ],
                [
                    77.58512,
                    12.99458
                ],
                [
                    77.58514,
                    12.99443
                ],
                [
                    77.58524,
                    12.99376
                ],
                [
                    77.58523,
                    12.99333
                ],
                [
                    77.58529,
                    12.99315
                ],
                [
                    77.58534,
                    12.99301
                ]
            ]
        }
    ]
}'
