MapmyIndia Interactive Vector Maps JS SDK for Web !

KML Overlays

KML: Keyhole Markup Language is a file format employed to showcase geographical data on maps. With this plugin, you have the capability to superimpose KML data onto Mappls Maps for web applications.

Mappls Live Demo | Code Pen Implementation

For access, you can get your api key from Mappls Console

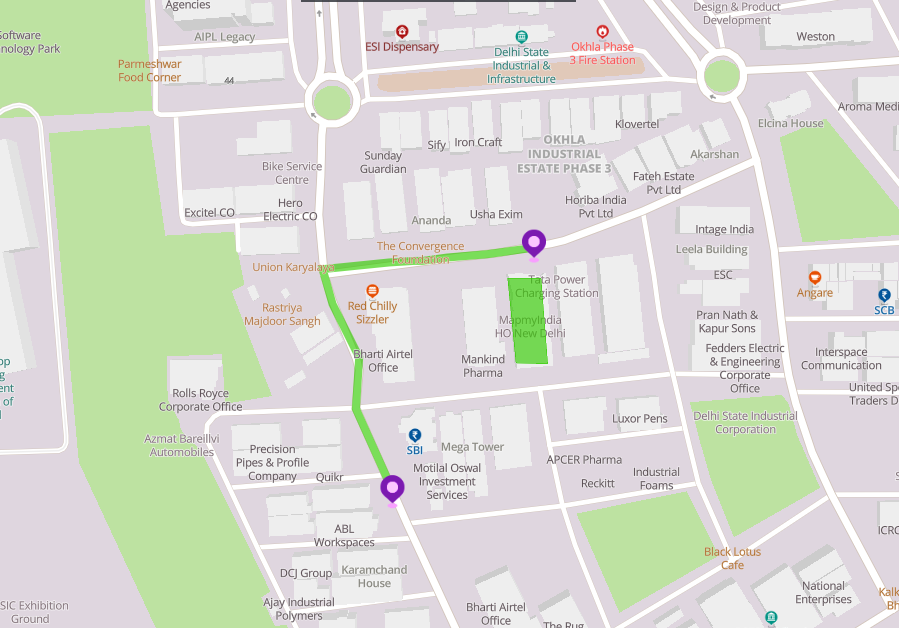

KML Representation

Supported Object Types

  • Markers

  • Polylines

  • Polygons

Adding a KML layer on map

KML Properties

Required

  • Map
  • url: URL of the KML file.

Optional

  • fitbounds: Automatically adjusts the map layer to fit within the boundaries defined by the GeoJSON data. By default it is set to false.
    {
        fitbounds: true
    }
  • fitboundOptions: This shows the options available on the fitBound property.
    {
        fitboundOptions: {padding: 120,duration:1000}
    }
  • cType: It is for geojson data geometry
    • 0: for lat,lng combination (Default)
    • 1: for lng,lat conbination
    {
        cType: 1
    }

KmlLayer Method

Mappls.KmlLayer()

    var url="https://www.mapmyindia.com/api/advanced-maps/doc/sample/mmi.kml";
    new mappls.KmlLayer({
        map:map_object,
        url:url,
        cType:1,
        preserveViewport:true
    });

Remove KML Overlay

    mappls.remove({map:map_object,layer:KmlLayer_object});
