MapmyIndia Interactive Vector Maps JS SDK for Web !

Markers

Markers are effortless way of pointing to a location, so getting right to it, you can go ahead and add markers that we provide out of the box but just in case you want to add your own, we’ve got that covered for you as well. There are 3 main categories of markers that you can add namely,
- Stock Markers: The one you get out of the box using our Interactive Vector Maps SDK and you can select from a lot of choices.
- Custom Marker: Just in case you want to provide your own markers, we’ve handled that for you as well.
- HTML Marker: In case you don’t want to add in an image you can use HTML to create a marker and then plot it on the map as well.

For access, you can get your api key from Mappls Console

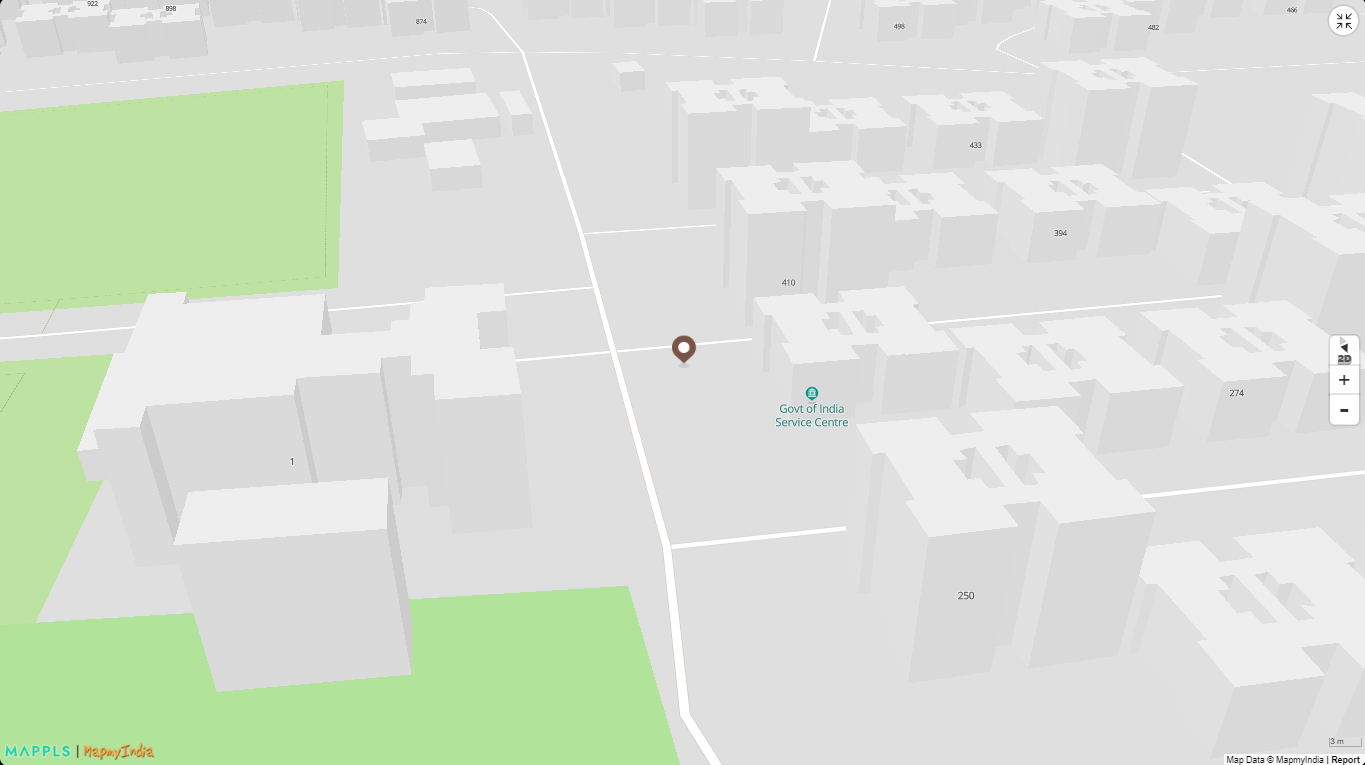

Marker

Add Markers

Code snippet for adding markers

var marker = new mappls.Marker({
    map: map,
    position: {"lat": 28.519467,"lng":77.223150}
    });

Code Snippets:

    marker = new mappls.Marker({
            map: object,
            id: id(optional),
            class: class(optional),
            position: {"lat": "28.519467","lng":"77.223150"},
            fitbounds: true, // or false
            fitboundOptions: {padding: 120,duration:1000}, /*if fitbound true*/
            icon: icon(url),
            offset: [0,10],
            width: 35,
            height: 20,
            html: <div style="white-space:nowrap;font-size:10px;padding l                   eft:15px;color:#fff">Hello World</div>,
            popupOptions: true, //or false
            popupHtml: 'Mapmyindia',
            draggable: true, //or false
            clustersOptions: {"color": "blue","bgcolor":"red"},
        })

Multiple Marker With cluster

Mappls Live Demo

Code snippet for adding multiple marker with cluster

    var geoData={
                "type": "FeatureCollection",
                "features": [{
                "type": "Feature",
                "properties": {"htmlPopup":"noida"},
                "geometry": {"type": "Point",
                "coordinates": [28.544,77.5454]}
                },{
                "type": "Feature",
                "properties": {"htmlPopup":"faridabad"},
                "geometry": {"type": "Point",
                "coordinates": [28.27189158,77.2158203125]}
                },{
                "type": "Feature",
                "properties": {"htmlPopup":"delhi"},
                "geometry": {"type": "Point",
                "coordinates": [28.549511,77.2678250]}
                }]
            };
    var marker=Mappls.Marker({map:map,position:geoData,icon_url:'https://apis.mapmyindia.com/map_v3/1.png',clusters:true,fitbounds:true,fitboundOptions:{padding: 120,duration:1000},popupOptions:{offset: {'bottom': [0, -20]}}});

GeoJSON bulk Markers

Mappls Live Demo

Code snippet for adding geojson bulk markers

    var geoData={
                "type": "FeatureCollection",
                "features": [{
                "type": "Feature",
                "properties":
                    {
                        "description":"noida",
                        "icon":"https://apis.mapmyindia.com/map_v3/1.png",
                        "icon-size":.75,
                        "icon-offset":[0,-10],
                        "text":"1",
                        "text-size":10,
                        "text-offset":[0,.6]
                },
                "geometry": {"type": "Point",
                "coordinates": [28.544,77.5454]}
                },{
                "type": "Feature",
                "properties": {"description":"faridabad","icon":"https://apis.mapmyindia.com/map_v3/1.png"},
                "geometry": {"type": "Point",
                "coordinates": [28.27189158,77.2158203125]}
                },{
                "type": "Feature",
                "properties": {"description":"delhi","icon":"https://apis.mapmyindia.com/map_v3/1.png"},
                "geometry": {"type": "Point",
                "coordinates": [28.549511,77.2678250]}
                }]
            };
    var marker=mappls.addGeoJson({map:map,data:geoData,fitbounds:true,cType:0});

Remove Markers

mappls.remove()

    mappls.remove({map: map_object, layer: marker_object});
